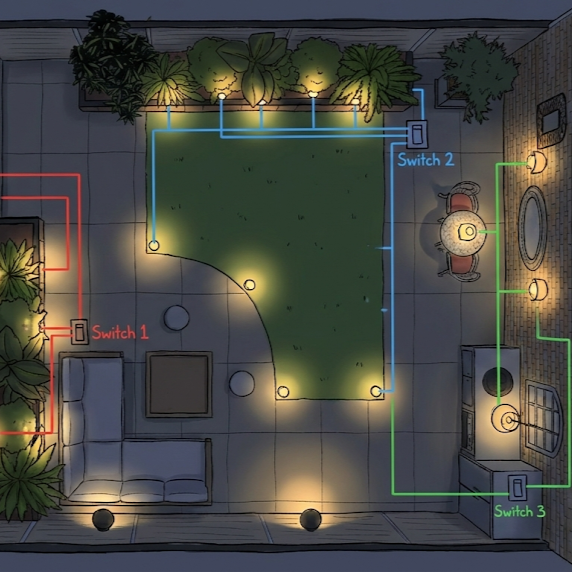

Visual representation of the nocturnal sanctuary lighting layout and 2700K LED circuit zones.
The Moonlight Garden Design Co. nocturnal lighting schematic digital download product badge.

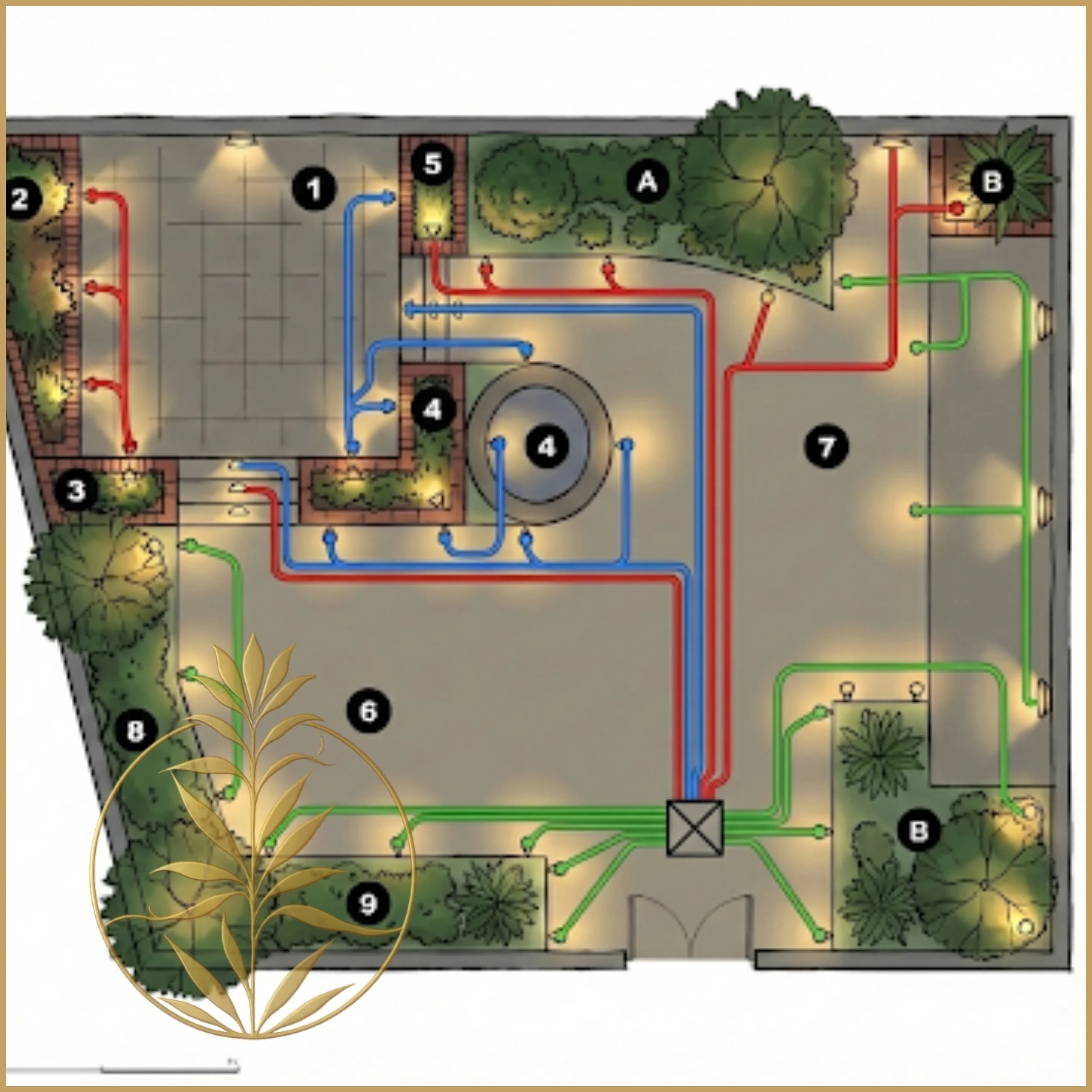

Technical garden lighting circuit wiring design plan showing circuit zones and cable runs for electricians.
Cinematic 3D garden render at dusk showing warm white LED lighting and porcelain paving.
Garden texture illuminated by 2700K warm white LED grazing lights at night.
Visual representation of the nocturnal sanctuary lighting layout and 2700K LED circuit zones.
The Moonlight Garden Design Co. nocturnal lighting schematic digital download product badge.
Technical garden lighting circuit wiring design plan showing circuit zones and cable runs for electricians.

Nocturnal Lighting Schematic | Technical Electrical Layout

£350.00

Curating the Second Shift with Professional Lighting Specification.

Transform your garden from a black void into a "Nocturnal Sanctuary." This bespoke technical add-on turns your aesthetic 3D visuals into a precise wiring instruction manual for your electrician. Lighting a garden is not about floodlighting the lawn; it is about "painting with shadows."

We create a dedicated lighting circuit plan that specifies the exact fixture locations for spike lights, wall lights, and recessed well lights. Crucially, we define the Beam Angles (narrow vs. flood) and mandate 2700K Warm White specifications to ensure you create drama and atmosphere without the "clinical" glare of cool white LEDs. This schematic bridges the gap between design intent and electrical installation.

Curating the Second Shift with Professional Lighting Specification.

Transform your garden from a black void into a "Nocturnal Sanctuary." This bespoke technical add-on turns your aesthetic 3D visuals into a precise wiring instruction manual for your electrician. Lighting a garden is not about floodlighting the lawn; it is about "painting with shadows."

We create a dedicated lighting circuit plan that specifies the exact fixture locations for spike lights, wall lights, and recessed well lights. Crucially, we define the Beam Angles (narrow vs. flood) and mandate 2700K Warm White specifications to ensure you create drama and atmosphere without the "clinical" glare of cool white LEDs. This schematic bridges the gap between design intent and electrical installation.

Technical Engineering: Add-On 01

Nocturnal Lighting Schematic

Nocturnal Logic

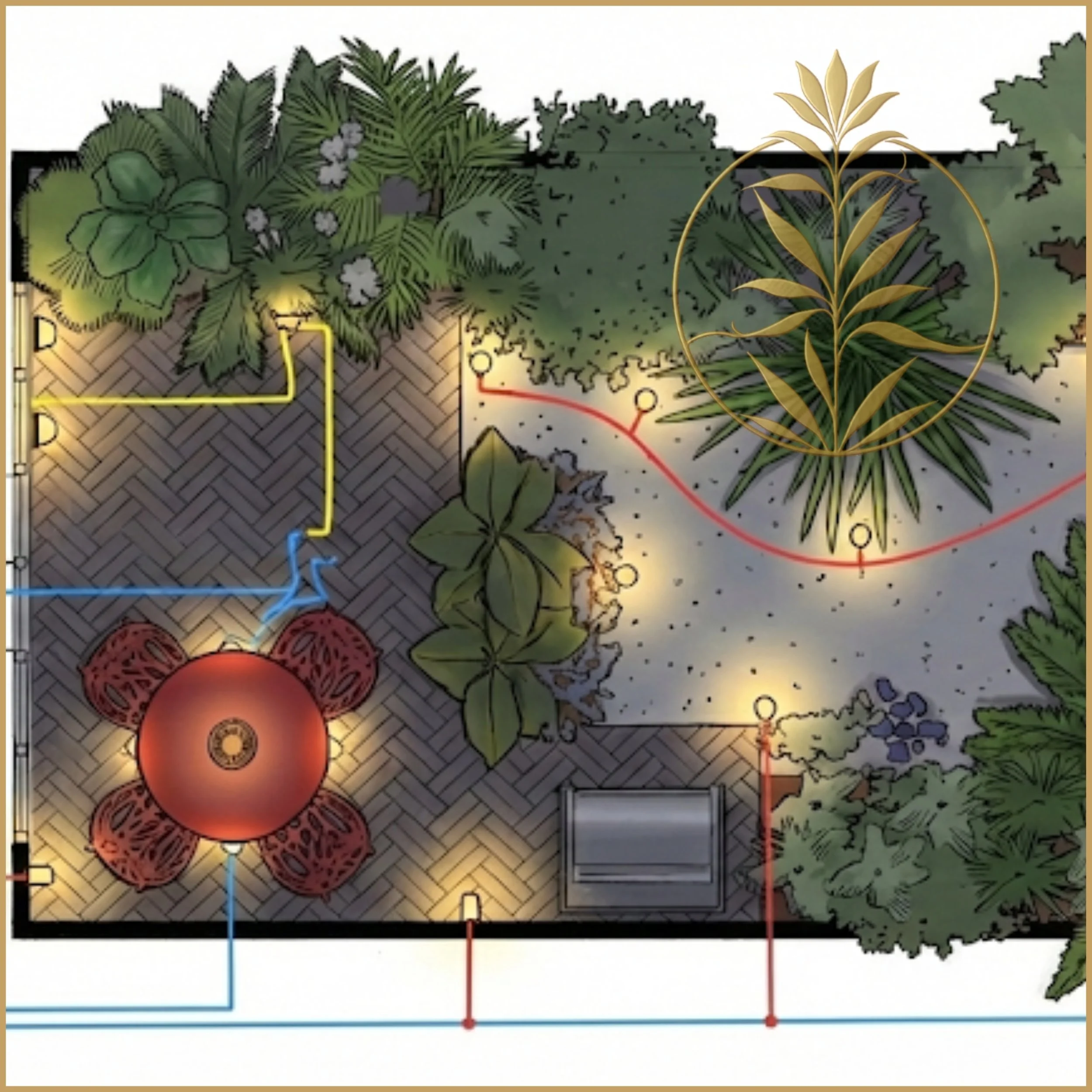

Circuit Logic Blueprint

Identifying transformer locations, 16A Dedicated Circuits, and circuit separation for 2700K lighting physics.

Beam Angle Specification

Specific mapping of 15° narrow spots for vertical grazing vs. 60° floods for silhouetting trees.

Contractor Alignment

Fixture Schedule

A technical shopping list specifying IP65/IP68 ratings, housing materials, and exact Kelvin output.

Smart Automation Strategy

Integration guide separating "Entertaining Modes" (Hue/Govee) from "Security" dusk-to-dawn sensors.

Engineering Evidence

📄 Lighting Plan Exemplar

Technical Standards

📄 Fixture Schedule & Angles 📂 Electrician Protocol

Lighting Insights (FAQ)

Can I use smart lighting like Philips Hue or Govee?

Yes. Our Nocturnal Lighting Schematic distinguishes between the "Smart Layer" (Ambience) and the "Hard-Wired Layer" (Security). We highly recommend Govee Outdoor Pro or Philips Hue for entertaining zones.

What is Dark Sky Compliance?

It is the ethical practice of shielding lights to protect wildlife. We specify lights that face strictly downwards (or use physical tree trunks to block upward spill) to reduce light pollution, protecting the circadian rhythms of bats and moths.

The Moonlight Garden Design Co. Lead Architect

BA (Hons) Graphic Design.
Bringing London-standard digital architecture to nationwide landscapes.

Physical Address

Flat 4, Ebenezer House, Kennington Lane, London, SE11 4HL.

07401 779 208 · info@moonlight-studio.uk

Refund Protocol

NICEIC contractor mandate strictly enforced. Digital engineering schematics are bespoke and non-returnable once technical drafting begins.

Digital Delivery

Remote technical service delivered UK wide. PDF blueprints via secure cloud handover. £0.00 Shipping.
